A meow-state for speedy org structure navigation

Posted on Jul 5, 2024

As an exercise, we implement a meow-state (mode) for navigation of org-mode document structure.

I’ve been very pleased with my switch to the meow modal editor, but one of the downsides of it is no obvious way to use speed keys in org-mode. Namely, the meow normal state maps would clash with the speed key definitions. One could just redefine the speed keys to avoid the normal state maps, or redefine the normal state maps themselves, but that’s no fun.

In the words of Mickey Petersen, org speed keys offer a kind of “transient modality” to default emacs keybindings. But meow is already a modal editing scheme, there’s no benefit that I can see to making speed keys a transient behavior, especially with how much I use org-mode.

We take a different approach and define our own meow-state to navigate org structure. Meow offers excellent support for defining your own states. For those who use evil, this like the user being able to define a different mode under which we can edit and navigate, much like evil-normal-state and evil-visual-state. Like evil, each meow-state has its own set of keybindings that call specific functions. We will define a state meow-org-motion-state that will be used for navigating org documents. Doing so is shockingly simple; most of the code is lifted directly from the meow customization documentation.

The entire code in defining the state is this:

(setq meow-org-motion-keymap (make-keymap))
(meow-define-state org-motion
  "Org-mode structural motion"
  :lighter "[O]"
  :keymap meow-org-motion-keymap)

(meow-define-keys 'org-motion
  '("<escape>" . meow-normal-mode)
  '("i" . meow-insert-mode)
  '("g" . meow-normal-mode)
  '("u" .  meow-undo)
  ;; Moving between headlines
  '("k" .  org-previous-visible-heading)
  '("j" .  org-next-visible-heading)
  ;; Moving between headings at the same level
  '("p" .  org-backward-heading-same-level)
  '("n" .  org-forward-heading-same-level)
  ;; Moving subtrees themselves
  '("K" .  org-subtree-up)
  '("J" .  org-subtree-down)
  ;; Subtree de/promotion
  '("L" .  org-demote-subtree)
  '("H" .  org-promote-subtree)
  ;; Completion-style search of headings
  '("v" .  consult-org-heading)
  ;; Setting subtree metadata
  '("l" .  org-set-property)
  '("t" .  org-todo)
  '("d" .  org-deadline)
  '("s" .  org-schedule)
  '("e" .  org-set-effort)
  ;; Block navigation
  '("b" .  org-previous-block)
  '("f" .  org-next-block)
  ;; Narrowing/widening
  '("N" .  org-narrow-to-subtree)
  '("W" .  widen))

(meow-define-keys 'normal
  '("O" . meow-org-motion-mode))

Whilst being easy to define, this configuration is also very easy to read. Every keymap is self explanatory. In particular, we implement meow-style up-down nagivation of subtrees with jk, and add level-restricted motion with np. Subtree metadata can be edited from this state without exiting the state, and source block navigation is added–useful for literate programmers.

There’s one major benefit to using a custom meow-state instead of attempting to get speed keys working: this state is available anywhere in the buffer. With speed keys, the point must be at the beginning of an org heading. With our custom state, a simple press of O while in meow-normal-mode puts us in navigation mode. This makes navigation of org documents fast and accessible in a way that is superior to speed keys, something afforded to us by adopting a modal editing paradigm.

A demo of this mode is given below; you can see the keys pressed in the tab-line. Feel free to extend and/or modify the key definitions to your liking. You can check the value of org-speed-commands for inspiration.

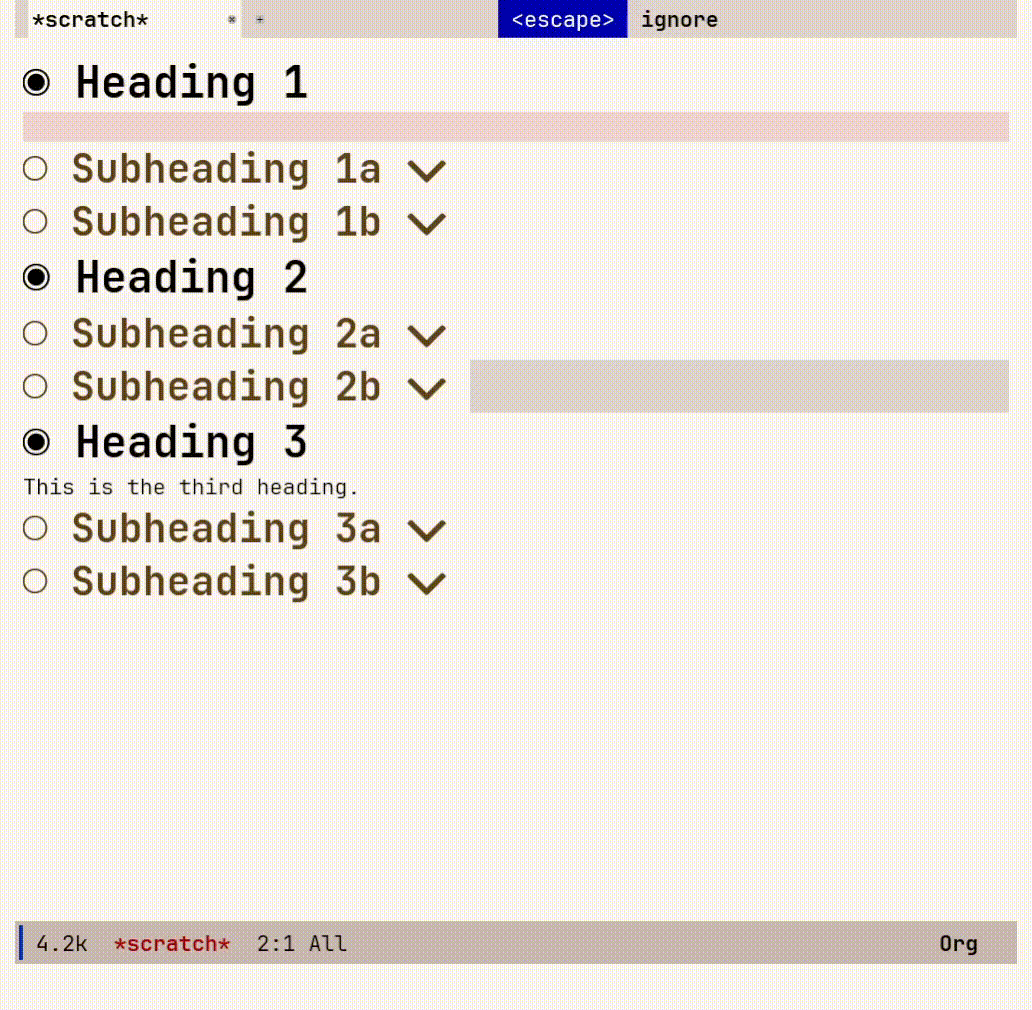

Figure 1: Demo of our org-motion state

Figure 1: Demo of our org-motion state
